complexity_analysis.ipynb
from matplotlib import pyplot as plt
import numpy as np
from astropy.io import fits
import healpy as hp
from healpy.newvisufunc import projview, newprojplot
from astropy.wcs import WCS
from astropy.coordinates import SkyCoord
import astropy.units as u
import h5py
from scipy.ndimage import map_coordinates
import matplotlib.colors as mcolors
original_cmap = plt.get_cmap('Set1')
colors = original_cmap(np.arange(1,6,1))
Set11 = mcolors.ListedColormap(colors)
fn = '~/Research/DRAGONS/DRAGONS_faraday_depth_cubes/faraday_synthesis/dragons_Npeaks_8sigma.hpx.fits'
eightsigmapeaksdat = fits.getdata(fn)
eightsigmapeakdshdr = fits.getheader(fn)
fn1 = '~/Research/DRAGONS/DRAGONS_faraday_depth_cubes/faraday_synthesis/dragons_Npeaks_8sigma.car.fits'
eightsigmapeakscardat = fits.getdata(fn1)
eightsigmapeakscarhdr = fits.getheader(fn1)

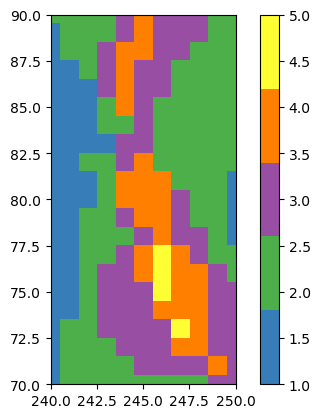

fig, ax = plt.subplots(1,1)
im = ax.imshow(eightsigmapeakscardat,
cmap = Set11, vmin =1, vmax = 5,
origin = 'lower'
)
plt.colorbar(im)
ax.set_xlim(240,250)
ax.set_ylim(70,90)
(70.0, 90.0)

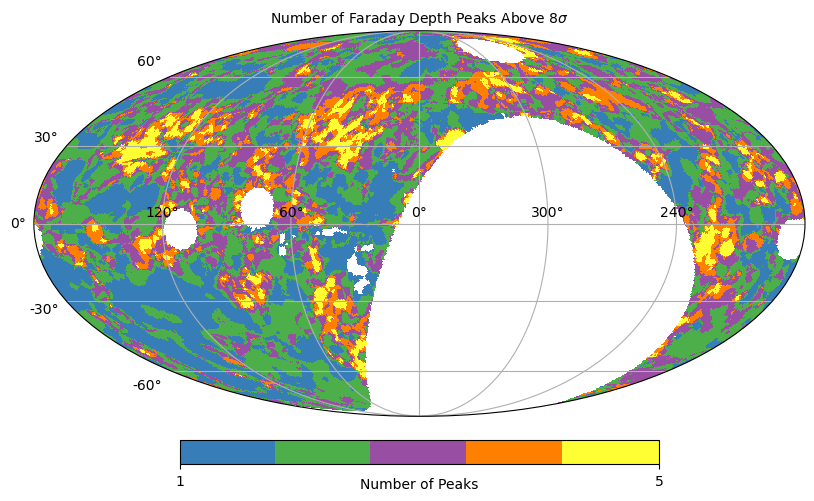

projview(
eightsigmapeaksdat,
projection_type = 'mollweide',
graticule = True,
graticule_labels=True,
# xlabel="Longitude",
# ylabel="Latitude",
cb_orientation = "horizontal",
cmap = Set11,
min = 1,
max = 5,
unit = r'Number of Peaks',
title = r'Number of Faraday Depth Peaks Above 8$\sigma$',
fontsize={
"title":10,
"xtick_label":10,
"ytick_label":10,
"cbar_label":10
}
)
<matplotlib.collections.QuadMesh at 0x7f134208c1d0>
fn = '~/Research/DRAGONS/DRAGONS_faraday_depth_cubes/faraday_synthesis/dragons_Npeaks_8sigma.car.fits'
Npeakscardat = fits.getdata(fn)
Npeakscarhdr = fits.getheader(fn)
#loading dirty Faraday Depth Cube for spectra
fn = '~/Research/DRAGONS/DRAGONS_faraday_depth_cubes/faraday_synthesis/dragons_FDF_tot_dirty_Kgal.car.fits'
FDdirtydat = fits.getdata(fn)
FDdirtyhdr = fits.getheader(fn)
#loading clean Faraday Depth Cube for spectra from DRAGONS
fn = '~/Research/DRAGONS/DRAGONS_faraday_depth_cubes/faraday_synthesis/dragons_FDF_clean_tot_Kgal.car.fits'
FDcleandat = fits.getdata(fn)
FDcleanhdr = fits.getheader(fn)
wcs = WCS(FDcleanhdr)
wcs
WCS Keywords
Number of WCS axes: 3
CTYPE : 'GLON-CAR' 'GLAT-CAR' 'FDEP'
CUNIT : 'deg' 'deg' 'rad / m2'
CRVAL : 0.0 0.0 0.0
CRPIX : 360.5 180.5 401.0
PC1_1 PC1_2 PC1_3 : 1.0 0.0 0.0
PC2_1 PC2_2 PC2_3 : 0.0 1.0 0.0
PC3_1 PC3_2 PC3_3 : 0.0 0.0 1.0
CDELT : -0.5 0.5 0.5
NAXIS : 720 360 801
FDcleanhdr
SIMPLE = T / conforms to FITS standard
BITPIX = -64 / array data type
NAXIS = 3 / number of array dimensions
NAXIS1 = 720
NAXIS2 = 360
NAXIS3 = 801
COORDSYS= 'Galactic ' / Ecliptic, Galactic or Celestial (equatorial)
CRPIX2 = 180.5
CDELT2 = 0.5
CUNIT2 = 'deg '
BUNIT = 'K/RMSF '
CTYPE2 = 'GLAT-CAR'
CRVAL2 = 0
CTYPE3 = 'FDEP ' / Faraday depth (linear)
CRPIX3 = 401
CRVAL3 = 0.0 / [rad/m^2] Coordinate value at reference point
CDELT3 = 0.5 / [rad/m^2] Coordinate increment at reference poi
CUNIT3 = 'rad/m^2 '
CTYPE1 = 'GLON-CAR'
CRPIX1 = 360.5
CRVAL1 = 0
CDELT1 = -0.5
CUNIT1 = 'deg '
INSTRUME= 'DRAO-15 '
Npeakscarhdr
SIMPLE = T / conforms to FITS standard
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 720
NAXIS2 = 360
COORDSYS= 'galactic' / Ecliptic, Galactic or Celestial (equatorial)
CRPIX2 = 180.5
CDELT2 = 0.5
CUNIT2 = 'deg '
BUNIT = 'NUMBER '
CTYPE2 = 'GLAT-CAR'
CRVAL2 = 0
CTYPE1 = 'GLON-CAR'
CRPIX1 = 360.5
CRVAL1 = 0
CDELT1 = -0.5
CUNIT1 = 'deg '
figsize = (10, 6)

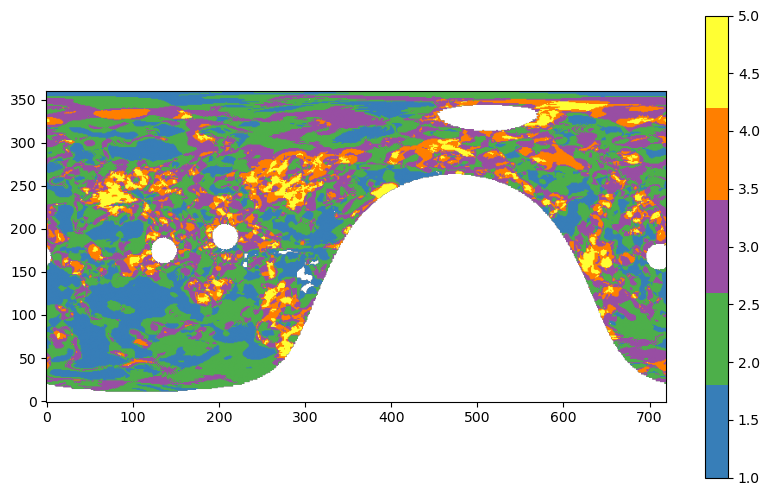

fig, ax = plt.subplots(1,1, figsize = figsize)#, subplot_kw={'projection'})#: wcs.celestial})
im0 = ax.imshow(Npeakscardat, origin='lower', cmap = Set11, vmin=1, vmax=5)
plt.colorbar(im0)
plt.show()
mask = (Npeakscardat == 0)
y_indices, x_indices = np.where(mask)
zero_comp_pix_coord = list(zip(x_indices, y_indices))
print(len(zero_comp_pix_coord), zero_comp_pix_coord[:5])
0 []
Finding lines of sight with given faraday complexity, as well as the regions with this complexity. Region here, defined as an area greater than or equal to 59 square pixels. Based on the beam area of the 15 m telescope at DRAO
faraday complexity: 1
wcs = WCS(Npeakscarhdr)
mask = (0 < Npeakscardat) & (Npeakscardat < 2)
yIndices, xIndices = np.where(mask)
oneCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(oneCompPixCoord), oneCompPixCoord[:5])
37695 [[113 12]
[114 12]
[115 12]
[116 12]
[133 12]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(oneCompPixCoord)))
newLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(oneCompPixCoord[currentIndex])]
queue = [oneCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = oneCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(oneCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(oneCompPixCoord[actualIdx])
newLoS.append(currentRegion)
minimumPixArea = 59
resolvedRegions = [r for r in newLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(resolvedRegions)}, distinct lines of sight: {len(newLoS)}")
Number of regions: 36726, distinct lines of sight: 37684
#try doing the same thing with centroids instead
compOneLoSCentroids = np.zeros((len(newLoS), 2), dtype=np.float32)
for i, region in enumerate(newLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compOneLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compOneLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compOneLoSCentroids.shape}")
print(f"Example centroid: {compOneLoSCentroids[0]}")
Centroids shape: (37684, 2)
Example centroid: [111.15854 -82.05285]
complexity = 2
mask = (1 < Npeakscardat) & (Npeakscardat < 3)
yIndices, xIndices = np.where(mask)
twoCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(twoCompPixCoord), twoCompPixCoord[:5])
60185 [[69 12]
[70 12]
[71 12]
[72 12]
[73 12]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(twoCompPixCoord)))
compTwoNewLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(twoCompPixCoord[currentIndex])]
queue = [twoCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = twoCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(twoCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(twoCompPixCoord[actualIdx])
compTwoNewLoS.append(currentRegion.copy())
minimumPixArea = 59
compTwoResolvedRegions = [r for r in compTwoNewLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(compTwoResolvedRegions)}, distinct lines of sight: {len(compTwoNewLoS)}")
Number of regions: 59933, distinct lines of sight: 60153
#try doing the same thing with centroids instead
wcs = WCS(Npeakscarhdr, naxis=2)
compTwoLoSCentroids = np.zeros((len(compTwoNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compTwoNewLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compTwoLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compTwoLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compTwoLoSCentroids.shape}")
print(f"Example centroid: {compTwoLoSCentroids[0]}")
compTwoLoSCentroids[5]
Centroids shape: (60153, 2)
Example centroid: [144.16667 -83.354164]
array([141.88725, -83.19118], dtype=float32)
complexity = 3
mask = (2 < Npeakscardat) & (Npeakscardat < 4)
yIndices, xIndices = np.where(mask)
threeCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(threeCompPixCoord), threeCompPixCoord[:5])
45373 [[55 13]
[57 13]
[58 13]
[59 13]
[60 13]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(threeCompPixCoord)))
compThreeNewLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(threeCompPixCoord[currentIndex])]
queue = [threeCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = threeCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(threeCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(threeCompPixCoord[actualIdx])
compThreeNewLoS.append(currentRegion)
minimumPixArea = 59
compThreeResolvedRegions = [r for r in compThreeNewLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(compThreeResolvedRegions)}, distinct lines of sight: {len(compThreeNewLoS)}")
Number of regions: 45125, distinct lines of sight: 45371
#try doing the same thing with centroids instead
compThreeLoSCentroids = np.zeros((len(compThreeNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compThreeNewLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compThreeLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compThreeLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compThreeLoSCentroids.shape}")
print(f"Example centroid: {compThreeLoSCentroids[0]}")
Centroids shape: (45371, 2)
Example centroid: [125.26684 -75.33873]
complexity= 4
mask = (3 < Npeakscardat) & (Npeakscardat < 5)
yIndices, xIndices = np.where(mask)
fourCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(fourCompPixCoord), fourCompPixCoord[:5])
18940 [[32 25]
[33 25]
[34 25]
[35 25]
[36 25]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(fourCompPixCoord)))
compFourNewLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(fourCompPixCoord[currentIndex])]
queue = [fourCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = fourCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(fourCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(fourCompPixCoord[actualIdx])
compFourNewLoS.append(currentRegion)
minimumPixArea = 59
compFourResolvedRegions = [r for r in compFourNewLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(compFourResolvedRegions)}, distinct lines of sight: {len(compFourNewLoS)}")
Number of regions: 18227, distinct lines of sight: 18920
#try doing the same thing with centroids instead
compFourLoSCentroids = np.zeros((len(compFourNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compFourNewLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compFourLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compFourLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compFourLoSCentroids.shape}")
print(f"Example centroid: {compFourLoSCentroids[0]}")
Centroids shape: (18920, 2)
Example centroid: [162. -77.25]
wcs = WCS(Npeakscarhdr)
compFourLoSGalCoords = []
for region in compFourNewLoS:
regionArray = np.array(region)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:, 1])
galCoords = skyCoords.galactic
galArray = np.column_stack((galCoords.l.deg, galCoords.b.deg))
compFourLoSGalCoords.append(galArray)
print(f"Number of LoS: {len(compFourLoSGalCoords)}")
print(f"Example LoS galactic coords \n{compFourLoSGalCoords[0]},\n{compFourLoSGalCoords[17]}")
Number of LoS: 18920
Example LoS galactic coords
[[163.75 -77.25]
[160.25 -77.25]
[160.75 -77.25]
[161.25 -77.25]
[161.75 -77.25]
[162.25 -77.25]
[162.75 -77.25]
[163.25 -77.25]],
[[181.25 -73.75]
[180.75 -70.25]
[181.25 -70.25]
[181.75 -70.25]
[180.25 -70.75]
[180.75 -70.75]
[181.25 -70.75]
[181.75 -70.75]
[182.25 -70.75]
[182.75 -70.75]
[180.25 -71.25]
[180.75 -71.25]
[181.25 -71.25]
[181.75 -71.25]
[182.25 -71.25]
[182.75 -71.25]
[183.25 -71.25]
[180.25 -71.75]
[180.75 -71.75]
[181.25 -71.75]
[181.75 -71.75]
[182.25 -71.75]
[181.75 -72.25]
[181.25 -73.25]
[181.75 -73.25]
[180.75 -73.75]
[181.25 -66.75]
[181.75 -67.25]
[182.25 -67.25]
[182.25 -67.75]
[182.75 -67.75]
[183.25 -67.75]
[180.25 -68.25]
[180.75 -68.25]
[181.75 -68.25]
[182.25 -68.25]
[182.75 -68.25]
[183.25 -68.25]
[180.25 -68.75]
[180.75 -68.75]
[181.25 -68.75]
[181.75 -68.75]
[182.25 -68.75]
[182.75 -68.75]
[183.25 -68.75]
[183.75 -68.75]
[180.25 -69.25]
[180.75 -69.25]
[181.25 -69.25]
[181.75 -69.25]
[182.25 -69.25]
[182.75 -69.25]
[183.25 -69.25]
[183.75 -69.25]
[180.25 -69.75]
[180.75 -69.75]
[181.25 -69.75]
[181.75 -69.75]
[182.25 -69.75]
[182.75 -69.75]
[183.25 -69.75]
[183.75 -69.75]
[184.25 -69.75]
[180.25 -70.25]
[182.25 -70.25]
[182.75 -70.25]
[183.25 -70.25]
[183.75 -70.25]
[184.25 -70.25]
[183.25 -70.75]
[183.75 -70.75]
[184.25 -70.75]
[181.75 -66.75]
[182.75 -67.25]
[183.75 -67.75]
[183.75 -68.25]
[184.25 -68.75]
[184.25 -69.25]
[184.75 -69.75]
[184.75 -70.25]
[182.25 -66.75]
[183.25 -67.25]
[184.25 -67.75]
[184.25 -68.25]
[184.75 -68.75]
[184.75 -69.25]
[185.25 -69.75]
[184.75 -68.25]
[185.25 -69.25]
[185.25 -68.25]
[185.25 -68.75]
[185.75 -69.25]
[185.75 -68.75]
[180.25 -65.25]
[180.75 -65.25]
[180.25 -65.75]
[180.75 -65.75]
[181.25 -65.75]
[180.25 -66.25]
[180.75 -66.25]
[181.25 -66.25]
[181.75 -66.25]
[182.25 -66.25]
[182.75 -66.25]
[182.75 -66.75]
[183.25 -66.75]
[183.75 -66.75]
[184.25 -66.75]
[184.75 -66.75]
[183.75 -67.25]
[184.25 -67.25]
[184.75 -67.25]
[185.25 -66.75]
[185.25 -67.25]
[184.75 -67.75]
[185.25 -67.75]
[185.75 -67.25]
[185.75 -67.75]
[185.75 -68.25]
[186.25 -67.25]
[186.25 -67.75]
[186.25 -68.25]
[186.75 -67.25]
[186.75 -67.75]
[186.75 -68.25]
[186.25 -68.75]
[187.25 -68.25]
[187.25 -67.75]
[187.75 -68.25]
[187.75 -67.75]
[188.25 -68.25]
[188.25 -67.75]
[188.75 -67.75]
[189.25 -67.75]
[189.75 -67.75]
[190.25 -67.25]
[190.25 -67.75]
[190.75 -67.75]
[190.75 -67.25]
[190.75 -69.75]
[190.25 -70.25]
[191.25 -69.75]
[190.75 -70.25]
[190.75 -70.75]
[191.75 -67.25]
[192.25 -67.25]
[191.25 -70.25]
[191.75 -69.75]
[191.75 -70.25]
[192.25 -69.75]
[192.25 -70.25]
[191.25 -70.75]
[192.75 -69.75]
[192.75 -70.25]
[191.75 -70.75]
[193.25 -70.25]
[192.25 -70.75]
[192.75 -70.75]
[193.25 -70.75]
[193.75 -70.75]
[192.25 -71.25]
[192.75 -71.25]
[193.25 -71.25]
[193.75 -71.25]
[192.25 -71.75]
[192.75 -71.75]
[193.25 -71.75]
[191.75 -72.25]
[192.25 -72.25]
[192.75 -72.25]
[193.25 -72.25]
[194.25 -70.75]
[194.25 -71.25]
[193.75 -71.75]
[193.75 -72.25]
[194.25 -71.75]
[193.75 -72.75]
[194.75 -71.25]
[194.25 -72.25]
[194.75 -71.75]
[194.25 -72.75]
[195.25 -71.25]
[194.75 -72.25]
[195.25 -71.75]
[194.75 -72.75]
[195.75 -71.25]
[195.25 -72.25]
[195.75 -71.75]
[195.25 -72.75]
[196.25 -71.75]
[195.75 -72.25]
[195.75 -72.75]
[196.25 -72.25]
[196.75 -71.75]
[196.75 -72.25]
[196.25 -72.75]]
complexity = 5
mask = (4 < Npeakscardat) & (Npeakscardat < 6)
yIndices, xIndices = np.where(mask)
fiveCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(fiveCompPixCoord), fiveCompPixCoord[:5])
5602 [[ 95 42]
[ 97 43]
[697 45]
[272 53]
[273 53]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(fiveCompPixCoord)))
compFiveNewLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(fiveCompPixCoord[currentIndex])]
queue = [fiveCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = fiveCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(fiveCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(fiveCompPixCoord[actualIdx])
compFiveNewLoS.append(currentRegion)
minimumPixArea = 59
compFiveResolvedRegions = [r for r in compFiveNewLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(compFiveResolvedRegions)}, distinct lines of sight: {len(compFiveNewLoS)}")
Number of regions: 4449, distinct lines of sight: 5593
#try doing the same thing with centroids instead
compFiveLoSCentroids = np.zeros((len(compFiveNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compFiveNewLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compFiveLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compFiveLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compFiveLoSCentroids.shape}")
print(f"Example centroid: {compFiveLoSCentroids[0]}")
Centroids shape: (5593, 2)
Example centroid: [131.75 -68.5 ]
wcs = WCS(Npeakscarhdr)
compFiveLoSGalCoords = []
for region in compFiveNewLoS:
regionArray = np.array(region)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:, 1])
galCoords = skyCoords.galactic
galArray = np.column_stack((galCoords.l.deg, galCoords.b.deg))
compFiveLoSGalCoords.append(galArray)
print(f"Number of LoS: {len(compFiveLoSGalCoords)}")
print(f"Example LoS galactic coords \n{compFiveLoSGalCoords[0]},\n{compFiveLoSGalCoords[17]}")
Number of LoS: 5593
Example LoS galactic coords
[[132.25 -68.75]
[131.25 -68.25]],
[[ 43.75 -63.25]
[ 43.75 -59.75]
[ 44.25 -59.75]
[ 42.25 -60.25]
[ 42.75 -60.25]
[ 43.75 -60.25]
[ 41.25 -60.75]
[ 41.75 -60.75]
[ 42.25 -60.75]
[ 42.75 -60.75]
[ 43.25 -60.75]
[ 43.75 -60.75]
[ 44.25 -60.75]
[ 42.25 -61.25]
[ 42.75 -61.25]
[ 42.25 -61.75]
[ 42.75 -61.75]
[ 43.25 -61.75]
[ 43.75 -61.75]
[ 44.25 -61.75]
[ 44.75 -61.75]
[ 40.75 -62.25]
[ 41.25 -62.25]
[ 41.75 -62.25]
[ 42.25 -62.25]
[ 42.75 -62.25]
[ 43.25 -62.25]
[ 43.75 -62.25]
[ 40.75 -62.75]
[ 41.25 -62.75]
[ 41.75 -62.75]
[ 42.25 -62.75]
[ 42.75 -62.75]
[ 43.25 -62.75]
[ 43.75 -62.75]
[ 40.75 -63.25]
[ 41.25 -63.25]
[ 41.75 -63.25]
[ 42.25 -63.25]
[ 42.75 -63.25]
[ 43.25 -63.25]
[ 42.25 -56.75]
[ 42.75 -56.75]
[ 45.25 -56.75]
[ 41.75 -57.25]
[ 45.75 -57.25]
[ 46.25 -57.25]
[ 46.25 -57.75]
[ 42.25 -58.25]
[ 42.75 -58.25]
[ 43.25 -58.25]
[ 43.75 -58.25]
[ 44.25 -58.25]
[ 41.25 -58.75]
[ 41.75 -58.75]
[ 42.25 -58.75]
[ 42.75 -58.75]
[ 43.25 -58.75]
[ 43.75 -58.75]
[ 44.25 -58.75]
[ 44.75 -58.75]
[ 42.25 -59.25]
[ 42.75 -59.25]
[ 43.25 -59.25]
[ 45.25 -59.25]
[ 41.25 -59.75]
[ 41.75 -59.75]
[ 42.25 -59.75]
[ 44.75 -59.75]
[ 45.25 -59.75]
[ 40.25 -60.25]
[ 40.75 -60.25]
[ 41.25 -60.25]
[ 41.75 -60.25]
[ 40.75 -60.75]
[ 45.75 -56.75]
[ 41.75 -56.75]
[ 39.25 -58.75]
[ 39.25 -59.25]
[ 38.75 -59.75]
[ 38.75 -60.75]
[ 39.25 -60.75]
[ 39.75 -60.75]
[ 40.25 -60.75]
[ 39.75 -62.25]
[ 40.25 -62.25]
[ 38.75 -58.25]
[ 38.75 -58.75]
[ 38.75 -59.25]
[ 38.25 -59.75]
[ 38.25 -60.25]
[ 41.75 -53.25]
[ 41.25 -53.75]
[ 41.75 -53.75]
[ 41.25 -54.25]
[ 41.75 -54.25]
[ 40.75 -54.75]
[ 41.75 -54.75]
[ 42.25 -54.75]
[ 42.75 -54.75]
[ 39.25 -55.25]
[ 39.75 -55.25]
[ 40.25 -55.25]
[ 40.75 -55.25]
[ 41.75 -55.25]
[ 42.25 -55.25]
[ 42.75 -55.25]
[ 43.25 -55.25]
[ 39.25 -55.75]
[ 39.75 -55.75]
[ 40.25 -55.75]
[ 41.75 -55.75]
[ 42.25 -55.75]
[ 42.75 -55.75]
[ 43.25 -55.75]
[ 38.75 -56.25]
[ 39.25 -56.25]
[ 41.75 -56.25]
[ 42.25 -56.25]
[ 42.75 -56.25]
[ 45.25 -56.25]
[ 38.75 -56.75]
[ 38.75 -55.75]
[ 38.25 -56.75]
[ 38.25 -57.25]
[ 38.25 -57.75]
[ 37.75 -57.75]
[ 41.25 -53.25]
[ 38.25 -56.25]
[ 37.25 -56.25]
[ 36.75 -56.75]
[ 37.25 -56.75]
[ 37.75 -56.75]
[ 36.75 -57.25]
[ 37.25 -57.25]
[ 37.75 -57.25]
[ 40.25 -50.25]
[ 41.25 -50.25]
[ 41.75 -50.25]
[ 39.25 -50.75]
[ 39.75 -50.75]
[ 40.25 -50.75]
[ 40.75 -50.75]
[ 41.25 -50.75]
[ 41.75 -50.75]
[ 42.25 -50.75]
[ 39.25 -51.25]
[ 39.75 -51.25]
[ 40.25 -51.25]
[ 40.75 -51.25]
[ 41.75 -51.25]
[ 42.25 -51.25]
[ 42.75 -51.25]
[ 39.25 -51.75]
[ 39.75 -51.75]
[ 40.25 -51.75]
[ 40.75 -51.75]
[ 42.25 -51.75]
[ 42.75 -51.75]
[ 43.25 -51.75]
[ 39.75 -52.25]
[ 40.25 -52.25]
[ 40.75 -52.25]
[ 41.25 -52.25]
[ 41.75 -52.25]
[ 40.25 -52.75]
[ 40.75 -52.75]
[ 41.25 -52.75]
[ 41.75 -52.75]
[ 40.25 -53.25]
[ 40.75 -53.25]
[ 38.75 -51.25]
[ 39.75 -50.25]
[ 38.75 -50.75]
[ 37.25 -48.75]
[ 37.75 -48.75]
[ 37.25 -49.25]
[ 37.75 -49.25]
[ 38.25 -49.25]
[ 38.75 -49.25]
[ 36.75 -49.75]
[ 37.25 -49.75]
[ 37.75 -49.75]
[ 38.25 -49.75]
[ 38.75 -49.75]
[ 39.25 -49.75]
[ 39.75 -49.75]
[ 37.25 -50.25]
[ 37.75 -50.25]
[ 38.25 -50.25]
[ 38.75 -50.25]
[ 39.25 -50.25]
[ 38.25 -50.75]
[ 36.25 -49.25]
[ 36.75 -49.25]
[ 36.25 -49.75]
[ 35.75 -49.75]
[ 37.25 -47.75]
[ 35.75 -49.25]
[ 35.25 -46.25]
[ 35.75 -46.25]
[ 34.75 -46.75]
[ 35.25 -46.75]
[ 35.75 -46.75]
[ 36.75 -46.75]
[ 37.25 -46.75]
[ 34.75 -47.25]
[ 35.25 -47.25]
[ 35.75 -47.25]
[ 36.75 -47.25]
[ 37.25 -47.25]
[ 37.75 -47.25]
[ 33.75 -48.25]
[ 33.75 -48.75]
[ 34.25 -48.75]
[ 34.25 -49.25]
[ 34.75 -49.25]
[ 35.25 -49.25]
[ 33.25 -47.75]
[ 33.75 -47.75]
[ 33.25 -48.25]
[ 32.75 -48.25]
[ 33.25 -46.75]
[ 32.75 -47.75]
[ 32.75 -44.25]
[ 33.25 -44.25]
[ 33.75 -45.75]
[ 32.75 -46.25]
[ 33.25 -46.25]
[ 31.75 -46.75]
[ 32.25 -46.75]
[ 32.75 -46.75]
[ 32.25 -47.25]
[ 32.75 -47.25]
[ 32.25 -47.75]
[ 32.25 -44.25]
[ 31.75 -47.25]
[ 31.75 -47.75]
[ 32.25 -48.25]
[ 31.25 -44.25]
[ 31.75 -44.25]]
complexity = 6
mask = (5 < Npeakscardat) & (Npeakscardat < 7)
yIndices, xIndices = np.where(mask)
sixCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(sixCompPixCoord), sixCompPixCoord[:5])
1250 [[276 56]
[277 56]
[278 56]
[279 56]
[280 56]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(sixCompPixCoord)))
compSixNewLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(sixCompPixCoord[currentIndex])]
queue = [sixCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = sixCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(sixCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(sixCompPixCoord[actualIdx])
compSixNewLoS.append(currentRegion)
minimumPixArea = 59
compSixResolvedRegions = [r for r in compSixNewLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(compSixResolvedRegions)}, distinct lines of sight: {len(compSixNewLoS)}")
Number of regions: 737, distinct lines of sight: 1217
#try doing the same thing with centroids instead
compSixLoSCentroids = np.zeros((len(compSixNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compSixNewLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compSixLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compSixLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compSixLoSCentroids.shape}")
print(f"Example centroid: {compSixLoSCentroids[0]}")
Centroids shape: (1217, 2)
Example centroid: [ 40.619232 -58.42692 ]
wcs = WCS(Npeakscarhdr)
compSixLoSGalCoords = []
for region in compSixNewLoS:
regionArray = np.array(region)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:, 1])
galCoords = skyCoords.galactic
galArray = np.column_stack((galCoords.l.deg, galCoords.b.deg))
compSixLoSGalCoords.append(galArray)
print(f"Number of LoS: {len(compSixLoSGalCoords)}")
print(f"Example LoS galactic coords \n{compSixLoSGalCoords[0]},\n{compSixLoSGalCoords[17]}")
Number of LoS: 1217
Example LoS galactic coords
[[ 41.75 -61.75]
[ 41.25 -58.25]
[ 41.75 -58.25]
[ 40.25 -58.75]
[ 40.75 -58.75]
[ 39.75 -59.25]
[ 40.25 -59.25]
[ 40.75 -59.25]
[ 41.25 -59.25]
[ 43.75 -59.25]
[ 44.25 -59.25]
[ 39.25 -59.75]
[ 39.75 -59.75]
[ 40.25 -59.75]
[ 40.75 -59.75]
[ 42.75 -59.75]
[ 43.25 -59.75]
[ 38.75 -60.25]
[ 39.25 -60.25]
[ 39.75 -60.25]
[ 43.25 -60.25]
[ 39.25 -61.25]
[ 39.75 -61.25]
[ 40.25 -61.25]
[ 40.75 -61.25]
[ 41.25 -61.25]
[ 41.75 -61.25]
[ 39.25 -61.75]
[ 39.75 -61.75]
[ 40.25 -61.75]
[ 40.75 -61.75]
[ 41.25 -61.75]
[ 41.25 -54.75]
[ 41.25 -55.25]
[ 40.75 -55.75]
[ 41.25 -55.75]
[ 39.75 -56.25]
[ 40.25 -56.25]
[ 40.75 -56.25]
[ 41.25 -56.25]
[ 39.25 -56.75]
[ 39.75 -56.75]
[ 41.25 -56.75]
[ 38.75 -57.25]
[ 39.25 -57.25]
[ 39.75 -57.25]
[ 40.25 -57.25]
[ 40.75 -57.25]
[ 38.75 -57.75]
[ 39.25 -57.75]
[ 39.75 -57.75]
[ 40.25 -57.75]
[ 40.75 -57.75]
[ 41.25 -57.75]
[ 41.75 -57.75]
[ 39.25 -58.25]
[ 39.75 -58.25]
[ 40.25 -58.25]
[ 40.75 -58.25]
[ 39.75 -58.75]
[ 44.75 -59.25]
[ 37.25 -57.75]
[ 41.25 -51.25]
[ 41.25 -51.75]
[ 41.75 -51.75]],
[[ 41.75 -61.75]
[ 41.25 -58.25]
[ 41.75 -58.25]
[ 40.25 -58.75]
[ 40.75 -58.75]
[ 39.75 -59.25]
[ 40.25 -59.25]
[ 40.75 -59.25]
[ 41.25 -59.25]
[ 43.75 -59.25]
[ 44.25 -59.25]
[ 39.25 -59.75]
[ 39.75 -59.75]
[ 40.25 -59.75]
[ 40.75 -59.75]
[ 42.75 -59.75]
[ 43.25 -59.75]
[ 38.75 -60.25]
[ 39.25 -60.25]
[ 39.75 -60.25]
[ 43.25 -60.25]
[ 39.25 -61.25]
[ 39.75 -61.25]
[ 40.25 -61.25]
[ 40.75 -61.25]
[ 41.25 -61.25]
[ 41.75 -61.25]
[ 39.25 -61.75]
[ 39.75 -61.75]
[ 40.25 -61.75]
[ 40.75 -61.75]
[ 41.25 -61.75]
[ 41.25 -54.75]
[ 41.25 -55.25]
[ 40.75 -55.75]
[ 41.25 -55.75]
[ 39.75 -56.25]
[ 40.25 -56.25]
[ 40.75 -56.25]
[ 41.25 -56.25]
[ 39.25 -56.75]
[ 39.75 -56.75]
[ 41.25 -56.75]
[ 38.75 -57.25]
[ 39.25 -57.25]
[ 39.75 -57.25]
[ 40.25 -57.25]
[ 40.75 -57.25]
[ 38.75 -57.75]
[ 39.25 -57.75]
[ 39.75 -57.75]
[ 40.25 -57.75]
[ 40.75 -57.75]
[ 41.25 -57.75]
[ 41.75 -57.75]
[ 39.25 -58.25]
[ 39.75 -58.25]
[ 40.25 -58.25]
[ 40.75 -58.25]
[ 39.75 -58.75]
[ 44.75 -59.25]
[ 37.25 -57.75]
[ 41.25 -51.25]
[ 41.25 -51.75]
[ 41.75 -51.75]]
complexity = 7
mask = (6 < Npeakscardat) & (Npeakscardat < 8)
yIndices, xIndices = np.where(mask)
sevenCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(sevenCompPixCoord), sevenCompPixCoord[:5])
242 [[277 65]
[278 66]
[279 66]
[641 103]
[642 103]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(sevenCompPixCoord)))
compSevenNewLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(sevenCompPixCoord[currentIndex])]
queue = [sevenCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = sevenCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(sevenCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(sevenCompPixCoord[actualIdx])
compSevenNewLoS.append(currentRegion)
minimumPixArea = 59
compSevenResolvedRegions = [r for r in compSevenNewLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(compSevenResolvedRegions)}, distinct lines of sight: {len(compSevenNewLoS)}")
Number of regions: 68, distinct lines of sight: 241
#try doing the same thing with centroids instead
compSevenLoSCentroids = np.zeros((len(compSevenNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compSevenNewLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compSevenLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compSevenLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compSevenLoSCentroids.shape}")
print(f"Example centroid: {compSevenLoSCentroids[0]}")
Centroids shape: (241, 2)
Example centroid: [ 40.75 -56.916668]
wcs = WCS(Npeakscarhdr)
compSevenLoSGalCoords = []
for region in compSevenNewLoS:
regionArray = np.array(region)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:, 1])
galCoords = skyCoords.galactic
galArray = np.column_stack((galCoords.l.deg, galCoords.b.deg))
compSevenLoSGalCoords.append(galArray)
print(f"Number of LoS: {len(compSevenLoSGalCoords)}")
print(f"Example LoS galactic coords \n{compSevenLoSGalCoords[0]},\n{compSevenLoSGalCoords[17]}")
Number of LoS: 241
Example LoS galactic coords
[[ 41.25 -57.25]
[ 40.25 -56.75]
[ 40.75 -56.75]],
[[228.25 -12.75]
[226.75 -9.75]
[227.25 -9.75]
[227.75 -9.75]
[225.75 -10.25]
[226.25 -10.25]
[227.25 -10.25]
[227.75 -10.75]
[227.25 -11.25]
[227.75 -11.25]
[228.25 -11.25]
[227.25 -11.75]
[227.75 -11.75]
[228.25 -11.75]
[227.25 -12.25]
[227.75 -12.25]
[228.25 -12.25]
[228.75 -12.25]
[226.75 -12.75]
[227.25 -12.75]
[227.75 -12.75]
[224.25 -7.75]
[223.75 -8.25]
[224.25 -8.25]
[223.75 -4.25]
[222.75 -4.75]
[223.25 -7.25]
[222.75 -3.75]
[223.25 -3.75]
[223.75 -3.75]
[222.75 -4.25]
[223.25 -4.25]]
complexity = 8
mask = (7 < Npeakscardat) & (Npeakscardat < 9)
yIndices, xIndices = np.where(mask)
eightCompPixCoord = np.column_stack((xIndices, yIndices))
print(len(eightCompPixCoord), eightCompPixCoord[:5])
19 [[704 213]
[705 214]
[705 215]
[675 216]
[676 216]]
wcs = WCS(Npeakscarhdr, naxis =2)
beamLimit = 7.2 #pixels
group = list(range(len(eightCompPixCoord)))
compEightNewLoS = []
while group:
currentIndex = group.pop(0)
currentRegion = [tuple(eightCompPixCoord[currentIndex])]
queue = [eightCompPixCoord[currentIndex]]
while queue:
point = queue.pop(0)
if not group:
break
groupCoords = eightCompPixCoord[group]
distances = np.linalg.norm(groupCoords - point, axis=1)
closeIndices = np.where(distances <= beamLimit)[0]
for idx in sorted(closeIndices, reverse=True):
actualIdx = group.pop(idx)
pixel = tuple(eightCompPixCoord[actualIdx])
currentRegion.append(pixel)
queue.append(eightCompPixCoord[actualIdx])
compEightNewLoS.append(currentRegion)
minimumPixArea = 59
compEightResolvedRegions = [r for r in compEightNewLoS if len(r) >= minimumPixArea]
print(f"Number of regions: {len(compEightResolvedRegions)}, distinct lines of sight: {len(compEightNewLoS)}")
Number of regions: 0, distinct lines of sight: 18
#try doing the same thing with centroids instead
compEightLoSCentroids = np.zeros((len(compEightNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compEightNewLoS):
regionArray = np.array(region,dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:,1])
galCoords = skyCoords.galactic
compEightLoSCentroids[i, 0] = np.mean(galCoords.l.deg)
compEightLoSCentroids[i, 1] = np.mean(galCoords.b.deg)
print(f"Centroids shape: {compEightLoSCentroids.shape}")
print(f"Example centroid: {compEightLoSCentroids[0]}")
Centroids shape: (18, 2)
Example centroid: [187.25 17.5 ]
compEightLoSGalCoords = []
for region in compEightNewLoS:
regionArray = np.array(region)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:, 1])
galCoords = skyCoords.galactic
galArray = np.column_stack((galCoords.l.deg, galCoords.b.deg))
compEightLoSGalCoords.append(galArray)
print(f"Number of LoS: {len(compEightLoSGalCoords)}")
print(f"Example LoS galactic coords \n{compEightLoSGalCoords[0]},\n{compEightLoSGalCoords[17]}")
Number of LoS: 18
Example LoS galactic coords
[[187.75 16.75]
[186.75 18.25]
[187.25 17.75]
[187.25 17.25]],
[[342.75 32.75]]
for name, losList in [('compThreeNewLoS', compThreeNewLoS),
('compFourNewLoS', compFourNewLoS),
('compFiveNewLoS', compFiveNewLoS)]:
print(f"{name}: region 0 length={len(losList[0])}, region 1 length={len(losList[1])}")
# check if all regions are identical or just same length
print(f"compFourNewLoS region 0 == region 1: {compFourNewLoS[0] == compFourNewLoS[1]}")
print(f"compFiveNewLoS region 0 == region 1: {compFiveNewLoS[0] == compFiveNewLoS[1]}")
print(f"compThreeNewLoS region 0 == region 1: {compThreeNewLoS[0] == compThreeNewLoS[1]}")
# for each complexity class, get pixel coords and convert to galactic centroids
wcs = WCS(Npeakscarhdr, naxis=2)
complexityClasses = {
'one': masks['one'],
'two': masks['two'],
'three': masks['three'],
'four': masks['four'],
'five': masks['five'],
'six': masks['six'],
'seven': masks['seven'],
'eight': masks['eight'],
}
pixelGalCoords = {}
for name, mask in complexityClasses.items():
yIndices, xIndices = np.where(mask)
pixCoord = np.column_stack((xIndices, yIndices))
skyCoords = wcs.pixel_to_world(pixCoord[:, 0], pixCoord[:, 1])
galCoords = skyCoords.galactic
pixelGalCoords[name] = np.column_stack((galCoords.l.deg, galCoords.b.deg)).astype(np.float32)
print(f"{name}: {len(pixelGalCoords[name])} pixels")
# mask = masks['one']
# yIndices, xIndices = np.where(mask)
# pixCoord = np.column_stack((xIndices, yIndices))
# print(f"pixCoord shape: {pixCoord.shape}")
# print(f"pixCoord sample:\n{pixCoord[:5]}")
# print(f"x range: {pixCoord[:, 0].min()} to {pixCoord[:, 0].max()}")
# print(f"y range: {pixCoord[:, 1].min()} to {pixCoord[:, 1].max()}")
# def clusterLoS(pixCoord, beamLimit=7.2):
# group = list(range(len(pixCoord)))
# losList = []
# while group:
# currentIndex = group.pop(0)
# currentRegion = [tuple(pixCoord[currentIndex])]
# queue = [pixCoord[currentIndex]]
# while queue:
# point = queue.pop(0)
# if not group:
# break
# groupCoords = pixCoord[group]
# distances = np.linalg.norm(groupCoords - point, axis=1)
# closeIndices = np.where(distances <= beamLimit)[0]
# for idx in sorted(closeIndices, reverse=True):
# actualIdx = group.pop(idx)
# pixel = tuple(pixCoord[actualIdx])
# currentRegion.append(pixel)
# queue.append(pixCoord[actualIdx])
# losList.append(list(currentRegion))
# return losList
# masks = {
# 'one': Npeakscardat == 1,
# 'two': Npeakscardat == 2,
# 'three': Npeakscardat == 3,
# 'four': Npeakscardat == 4,
# 'five': Npeakscardat == 5,
# 'six': Npeakscardat == 6,
# 'seven': Npeakscardat == 7,
# 'eight': Npeakscardat == 8,
# }
# for name, mask in masks.items():
# yIndices, xIndices = np.where(mask)
# pixCoord = np.column_stack((xIndices, yIndices))
# losList = clusterLoS(pixCoord)
# globals()[f'comp{name.capitalize()}NewLoS'] = losList
# print(f"comp{name.capitalize()}NewLoS: {len(losList)} LoS")
for name, mask in masks.items():
print(f"{name}: {np.sum(mask)} pixels")
totalPixels = sum(len(pixelGalCoords[name]) for name in ['two', 'three', 'four', 'five', 'six', 'seven', 'eight'])
complexPixels = sum(len(pixelGalCoords[name]) for name in ['three', 'four', 'five', 'six', 'seven', 'eight'])
print(f"Percentage complex: {complexPixels/totalPixels * 100:.2f}%")
Plotting
y = np.array([len(compOneLoSCentroid), len(compTwoLoSCentroid), len(compThreeLoSCentroid), len(compFourLoSCentroid), len(compFiveLoSCentroid), len(compSixLoSCentroid), len(compSevenLoSCentroid), len(compEightLoSCentroid)])
x = np.array([1, 2, 3, 4, 5, 6 ,7 ,8])
plt.scatter(x, y)
y = np.array([len(newLoS), len(compTwoNewLoS), len(compThreeNewLoS), len(compFourNewLoS), len(compFiveNewLoS), len(compSixNewLoS), len(compSevenNewLoS), len(compEightNewLoS)])
x = np.array([1, 2, 3, 4, 5, 6 ,7 ,8])
plt.bar(x, y)
working with WHAM
fn = '/home/justin/Research/WHAM/wham-ss-DR1-v161116-170912-grid.fits'
whamdat = fits.getdata(fn)
whamhdr = fits.getheader(fn)
whamhdr
#putting velo axis in km/s
nVel = whamhdr['NAXIS3']
crval3 = whamhdr['CRVAL3']
crpix3 = whamhdr['CRPIX3']
cdelt3 = whamhdr['CDELT3']
velAxis = (crval3 + (np.arange(nVel) - (crpix3 -1)) * cdelt3) / 1000
print(f"Velocity range: {velAxis[0]:.1f} to {velAxis[-1]:.1f} km/s")
velMask = (velAxis >= -169.1) & (velAxis <= 157.3)
velMask.sum()
whamIntegrated = np.nansum(whamdat[velMask, :, :] * abs(cdelt3), axis=0) / 1000
print(f"NaN count: {np.sum(np.isnan(whamdat))}")
print(f"Zero count: {np.sum(whamdat == 0)}")
print(f"Data range: {np.nanmin(whamdat):.4f} to {np.nanmax(whamdat):.4f}")
print(f"Integrated map range: {np.nanmin(whamIntegrated):.4f} to {np.nanmax(whamIntegrated):.4f}")
print(f"Channels selected: {velMask.sum()}")
print(f"Velocity range used: {velAxis[velMask][0]:.1f} to {velAxis[velMask][-1]:.1f} km/s")
vmin = np.nanpercentile(whamIntegrated, 5)
vmax = np.nanpercentile(whamIntegrated, 95)
plt.figure(figsize=(12, 6))
plt.imshow(whamIntegrated, origin='lower', vmin=vmin, vmax=vmax, cmap='inferno')
plt.colorbar(label='H-alpha intensity (R)')
plt.title('WHAM Integrated H-alpha')
plt.show()
lon = np.linspace(-180,180, whamIntegrated.shape[1])
lat = np.linspace(-90, 90, whamIntegrated.shape[0])
lonGrid, latGrid = np.meshgrid(np.deg2rad(lon), np.deg2rad(lat))
vmin = np.nanpercentile(whamIntegrated, 5)
vmax = np.nanpercentile(whamIntegrated, 95)
fig = plt.figure(figsize=(12, 6))
ax = fig.add_subplot(111, projection='mollweide')
img = ax.pcolormesh(lonGrid, latGrid, whamIntegrated, cmap='inferno', vmin=vmin, vmax=vmax)
plt.colorbar(img, ax=ax, label='H-alpha Intensity (R)', shrink=0.5)
ax.set_xlabel('Galactic Longitude (deg)')
ax.set_ylabel('Galactic Latitude (deg)')
ax.grid(True, alpha=0.3)
plt.title('WHAM Integrated H-alpha Emission')
plt.tight_layout()
plt.show()
stats with WHAM and DRAGONS looking for corellation between h-alpha and faraday complexity
#mean h-alpha intensity in LoS with complexity 8
whamWCS = WCS(whamhdr, naxis =2)
allCoords = np.vstack(compEightLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compEightWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode='nearest')
print(f"Sampled {len(compEightWhamSampled)} LoS")
print(f"H-alpha intensity range: {compEightWhamSampled.min():.2f} to {compEightWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compEightWhamSampled.mean():.2f}")
#mean h-alpha intensity in LoS with complexity 7
whamWCS = WCS(whamhdr, naxis =2)
allCoords = np.vstack(compSevenLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compSevenWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode='nearest')
print(f"Sampled {len(compSevenWhamSampled)} LoS")
print(f"H-alpha intensity range: {compSevenWhamSampled.min():.2f} to {compSevenWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compSevenWhamSampled.mean():.2f}")
#mean h-alpha intensity in LoS with complexity 6
whamWCS = WCS(whamhdr, naxis =2)
allCoords = np.vstack(compSixLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compSixWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode='nearest')
print(f"Sampled {len(compSixWhamSampled)} LoS")
print(f"H-alpha intensity range: {compSixWhamSampled.min():.2f} to {compSixWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compSixWhamSampled.mean():.2f}")
#mean h-alpha intensity in LoS with complexity 5
whamWCS = WCS(whamhdr, naxis =2)
allCoords = np.vstack(compFiveLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compFiveWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode='nearest')
print(f"Sampled {len(compFiveWhamSampled)} LoS")
print(f"H-alpha intensity range: {compFiveWhamSampled.min():.2f} to {compFiveWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compFiveWhamSampled.mean():.2f}")
#mean h-alpha in LoS with complexity 4
whamWCS = WCS(whamhdr, naxis =2)
allCoords = np.vstack(compFourLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compFourWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode='nearest')
print(f"Sampled {len(compFourWhamSampled)} LoS")
print(f"H-alpha intensity range: {compFourWhamSampled.min():.2f} to {compFourWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compFourWhamSampled.mean():.2f}")
#mean h-alpha in LoS with complexity 3
whamWCS = WCS(whamhdr, naxis=2)
allCoords = np.vstack(compThreeLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compThreeWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode ='nearest')
print(f"Sampled {len(compThreeWhamSampled)} LoS")
print(f"H-alpha intensity range: {compThreeWhamSampled.min():.2f} to {compThreeWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compThreeWhamSampled.mean():.2f}")
#mean h-alpha in LoS with complexity 2
whamWCS = WCS(whamhdr, naxis=2)
allCoords = np.vstack(compTwoLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compTwoWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode ='nearest')
print(f"Sampled {len(compTwoWhamSampled)} LoS")
print(f"H-alpha intensity range: {compTwoWhamSampled.min():.2f} to {compTwoWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compTwoWhamSampled.mean():.2f}")
#mean h-alpha in LoS with complexity 1
whamWCS = WCS(whamhdr, naxis=2)
allCoords = np.vstack(compOneLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
compOneWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode ='nearest')
print(f"Sampled {len(compOneWhamSampled)} LoS")
print(f"H-alpha intensity range: {compOneWhamSampled.min():.2f} to {compOneWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {compOneWhamSampled.mean():.2f}")
#mean h-alpha in LoS not displaying complexity
whamWCS = WCS(whamhdr, naxis=2)
simpleLoSCentroids = np.concatenate((compOneLoSCentroids, compTwoLoSCentroids), axis=0)
xPix, yPix = whamWCS.world_to_pixel_values(simpleLoSCentroids[:,0], simpleLoSCentroids[:,1])
simpleWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode ='nearest')
print(f"Sampled {len(simpleWhamSampled)} LoS")
print(f"H-alpha intensity range: {simpleWhamSampled.min():.2f} to {simpleWhamSampled.max():.2f}")
print(f"Mean H-alpha intensity: {np.mean(simpleWhamSampled):.2f}")
#mean h-alpha in LoS displaying complexity
whamWCS = WCS(whamhdr, naxis=2)
complexLoSCentroids = np.concatenate((compEightLoSCentroids, compSevenLoSCentroids, compSixLoSCentroids, compFiveLoSCentroids, compFourLoSCentroids, compThreeLoSCentroids), axis = 0)
allCoords = np.vstack(complexLoSCentroids)
xPix, yPix = whamWCS.world_to_pixel_values(allCoords[:,0], allCoords[:,1])
complexWhamSampled = map_coordinates(whamIntegrated, [yPix, xPix], order=1, mode='nearest')
print(f"Sampled {len(complexWhamSampled)} LoS")
print(f"H-alpha intensity range: {complexWhamSampled.min():.2f} to {complexWhamSampled.max():.2f}")
print(f"Median H-alpha intensity: {np.mean(complexWhamSampled):.2f}")
print(f"WHAM integrated range: {np.nanmin(whamIntegrated):.2f} to {np.nanmax(whamIntegrated):.2f} R")
print(f"WHAM integrated mean: {np.nanmean(whamIntegrated):.2f} R")
# compare spatial distributions
print(f"Complex centroid lat range: {threeToEightLoSCentroids[:, 1].min():.1f} to {threeToEightLoSCentroids[:, 1].max():.1f}")
print(f"Simple centroid lat range: {simpleLoSCentroids[:, 1].min():.1f} to {simpleLoSCentroids[:, 1].max():.1f}")
maxPos = np.unravel_index(np.nanargmax(whamIntegrated), whamIntegrated.shape)
print(f"Max position (y, x): {maxPos}")
print(f"Max value: {whamIntegrated[maxPos]:.2f} R")
# check how many pixels are above a reasonable threshold
print(f"Pixels above 100R: {np.sum(whamIntegrated > 100)}")
print(f"Pixels above 500R: {np.sum(whamIntegrated > 500)}")
print(f"99th percentile: {np.nanpercentile(whamIntegrated, 99):.2f} R")
print(f"95th percentile: {np.nanpercentile(whamIntegrated, 95):.2f} R")
print(f"Median: {np.nanpercentile(whamIntegrated, 50):.2f} R")
whamWCS2D = WCS(whamhdr, naxis=2)
maxL, maxB = whamWCS2D.pixel_to_world_values(1009, 356)
print(f"Max pixel galactic coords: l={maxL:.2f}, b={maxB:.2f}")
from scipy import stats
rho, pval = stats.spearmanr(complexWhamSampled, threeToEightLoSCentroids[:, 1])
print(f"Spearman rho: {rho}, p-value: {pval}")
allLats = np.concatenate([simpleLoSCentroids[:, 1], complexLoSCentroids[:, 1]])
allWhamSampled = np.concatenate([simpleWhamSampled, complexWhamSampled])
allNpeaks = np.concatenate([
np.full(len(simpleLoSCentroids), 0, dtype=np.int8),
np.full(len(complexLoSCentroids), 1, dtype=np.int8)
])
print(f"allLats: {allLats.shape}")
print(f"allWhamSampled: {allWhamSampled.shape}")
print(f"allNpeaks: {allNpeaks.shape}")
rhoLatNpeaks = stats.spearmanr(allLats.flatten(), allNpeaks.flatten()).statistic
pvalLatNpeaks = stats.spearmanr(allLats.flatten(), allNpeaks.flatten()).pvalue
rhoNpeaksHa = stats.spearmanr(allNpeaks, allWhamSampled).statistic
pvalNpeaksHa = stats.spearmanr(allNpeaks, allWhamSampled).pvalue
rhoLatHa = stats.spearmanr(allLats, allWhamSampled).statistic
pvalLatHa = stats.spearmanr(allLats, allWhamSampled).pvalue
print(f"Npeaks vs H-alpha: {rhoNpeaksHa:.4f}, p-value: {pvalNpeaksHa:.20e}")
print(f"Latitude vs Npeaks: {rhoLatNpeaks:.4f}, p-value: {pvalLatNpeaks:.20e}")
print(f"Latitude vs H-alpha: {rhoLatHa:.4f}, p-value: {pvalLatHa:.20e}")
#p-values are zero because of large sample sizes?
currently have a negative correlation between faraday complexity and h-alpha emission. complexity up h-alpha intensity go down
import pingouin as pg
import pandas as pd
df = pd.DataFrame({
'npeaks':allNpeaks,
'halpha':allWhamSampled,
'lat':allLats
})
result = pg.partial_corr(data=df, x = 'npeaks', y ='halpha', covar ='lat', method ='spearman')
print(result)
print("Non-complex LoS H-alpha:")
print(f" mean: {np.mean(simpleWhamSampled):.4f} R")
print(f" median: {np.median(simpleWhamSampled):.4f} R")
print(f" std: {np.std(simpleWhamSampled):.4f} R")
print(f" min: {np.min(simpleWhamSampled):.4f} R")
print(f" max: {np.max(simpleWhamSampled):.4f} R")
print(f" above 100R: {np.sum(simpleWhamSampled > 100)}")
print("\nComplex LoS H-alpha:")
print(f" mean: {np.mean(complexWhamSampled):.4f} R")
print(f" median: {np.median(complexWhamSampled):.4f} R")
print(f" std: {np.std(complexWhamSampled):.4f} R")
print(f" min: {np.min(complexWhamSampled):.4f} R")
print(f" max: {np.max(complexWhamSampled):.4f} R")
print(f" above 100R: {np.sum(complexWhamSampled > 100)}")
print("Non-complex centroids:")
print(f" longitude range: {simpleLoSCentroids[:, 0].min():.4f} to {simpleLoSCentroids[:, 0].max():.4f}")
print(f" latitude range: {simpleLoSCentroids[:, 1].min():.4f} to {simpleLoSCentroids[:, 1].max():.4f}")
print("\nComplex centroids:")
print(f" longitude range: {complexLoSCentroids[:, 0].min():.4f} to {complexLoSCentroids[:, 0].max():.4f}")
print(f" latitude range: {complexLoSCentroids[:, 1].min():.4f} to {complexLoSCentroids[:, 1].max():.4f}")
print(f"Simple LoS median latitude: {np.median(simpleLoSCentroids[:, 1]):.4f} deg")
print(f"Complex LoS median latitude: {np.median(complexLoSCentroids[:, 1]):.4f} deg")
print(f"Simple LoS mean H-alpha: {np.mean(simpleWhamSampled):.4f} R")
print(f"Complex LoS mean H-alpha: {np.mean(complexWhamSampled):.4f} R")
print(f"Simple LoS median H-alpha: {np.median(simpleWhamSampled):.4f} R")
print(f"Complex LoS median H-alpha: {np.median(complexWhamSampled):.4f} R")
LoS with high complexity tend to have a latitude further from the galactic plane so they will have less h-alpha, what if I filter the galactic plane out from these results entirely
latThresh = 10 #deg
simpleMask = np.abs(simpleLoSCentroids[:,1]) > latThresh
complexMask = np.abs(complexLoSCentroids[:,1]) > latThresh
simpleWhamFiltered = simpleWhamSampled[simpleMask]
complexWhamFiltered = complexWhamSampled[complexMask]
simpleLoSCentroidsFiltered = simpleLoSCentroids[simpleMask]
complexLoSCentroidsFiltered = complexLoSCentroids[complexMask]
print(f"Simple LoS remaining: {len(simpleWhamFiltered)} of {len(simpleWhamSampled)}")
print(f"Complex LoS remaining: {len(complexWhamFiltered)} of {len(complexWhamSampled)}")
print(f"Simple median H-alpha: {np.median(simpleLoSCentroidsFiltered):.2f} R")
print(f"Complex median H-alpha: {np.median(complexLoSCentroidsFiltered):.2f} R")
print(f"Simple median latitude: {np.median(simpleLoSCentroidsFiltered[:, 1]):.2f} deg")
print(f"Complex median latitude: {np.median(complexLoSCentroidsFiltered[:, 1]):.2f} deg")
print(f"Simple maximum intensity: {np.max(simpleLoSCentroidsFiltered)}")
print(f"Complex maximum intensity: {np.max(complexLoSCentroidsFiltered)}")
print(f"Simple minimum intensity: {np.min(simpleLoSCentroidsFiltered)}")
print(f"Complex minimum intensity: {np.min(complexLoSCentroidsFiltered)}")
allLatsFiltered = np.concatenate([simpleLoSCentroidsFiltered[:, 1], complexLoSCentroidsFiltered[:, 1]])
allWhamFiltered = np.concatenate([simpleWhamFiltered, complexWhamFiltered])
allNpeaksFiltered = np.concatenate([
np.zeros(len(simpleWhamFiltered), dtype=np.int8),
np.ones(len(complexWhamFiltered), dtype=np.int8)
])
dfFiltered = pd.DataFrame({
'npeaks': allNpeaksFiltered,
'halpha': allWhamFiltered,
'lat': allLatsFiltered
})
result = pg.partial_corr(data=dfFiltered, x='npeaks', y='halpha', covar='lat', method='spearman')
print(result)
Now need to make plots of h-alpha intensity versus number of LoS in the various complexities
y = (compOneWhamSampled.mean(), compTwoWhamSampled.mean(), compThreeWhamSampled.mean(), compFourWhamSampled.mean(),
compFiveWhamSampled.mean(), compSixWhamSampled.mean(), compSevenWhamSampled.mean(), compEightWhamSampled.mean())
x = 1, 2, 3 , 4 ,5 ,6 ,7 ,8
plt.bar(x, y)
plt.xlabel("Faraday depth components")
plt.ylabel("Mean WHAM intensity (R)")
import matplotlib.ticker as ticker
classLabels = ['1\n(simple)', '2', '3', '4', '5', '6', '7', '8\n(complex)']
classData = [compOneWhamSampled, compTwoWhamSampled, compThreeWhamSampled, compFourWhamSampled,
compFiveWhamSampled, compSixWhamSampled, compSevenWhamSampled, compEightWhamSampled]
fig, ax = plt.subplots(figsize=(12,6))
parts = ax.violinplot(classData, positions=range(1,9), showmedians=True, showextrema=False)
ax.set_xticks(range(1,9))
ax.set_xticklabels(classLabels)
ax.set_xlabel('Faraday Depth Peaks')
ax.set_ylabel('H-alpha Intensity (R)')
ax.set_title('H-alpha Intensity vs Faraday Complexity') #need a better title later
ax.set_yscale('log')
ax.yaxis.set_major_formatter(ticker.ScalarFormatter())
ax.grid(True, axis='y')
plt.tight_layout()
print(f"compTwoWhamSampled unique values: {len(np.unique(compTwoWhamSampled))}")
print(f"compTwoWhamSampled range: {compTwoWhamSampled.min():.2f} to {compTwoWhamSampled.max():.2f}")
print(f"compTwoWhamSampled median: {np.median(compTwoWhamSampled):.2f}")
print(f"compTwoWhamSampled std: {np.std(compTwoWhamSampled):.2f}")
print(f"compTwoWhamSampled shape: {compTwoWhamSampled.shape}")
print(f"compTwoLoSCentroids shape: {compTwoLoSCentroids.shape}")
print(f"compTwoLoSCentroids unique rows: {len(np.unique(compTwoLoSCentroids, axis=0))}")
print(f"compTwoLoSCentroids sample:\n{compTwoLoSCentroids[:5]}")
print(wcs)
print(wcs.naxis)
print(f"compTwoNewLoS length: {len(compTwoNewLoS)}")
print(f"First region of compTwoNewLoS: {compTwoNewLoS[0][:3]}")
print(f"First region as array: {np.array(compTwoNewLoS[0], dtype=np.int32)[:3]}")
testRegion = np.array(compTwoNewLoS[0], dtype=np.int32)
testSky = wcs.pixel_to_world(testRegion[:, 0], testRegion[:, 1])
testGal = testSky.galactic
print(f"Test l values: {testGal.l.deg[:5]}")
print(f"Test b values: {testGal.b.deg[:5]}")
print(f"Test mean l: {np.mean(testGal.l.deg):.4f}")
print(f"Test mean b: {np.mean(testGal.b.deg):.4f}")
print(f"compTwoLoSCentroids unique rows: {len(np.unique(compTwoLoSCentroids, axis=0))}")
print(f"compTwoLoSCentroids first 5:\n{compTwoLoSCentroids[:5]}")
print(f"compTwoLoSCentroids last 5:\n{compTwoLoSCentroids[-5:]}")
wcs = WCS(Npeakscarhdr, naxis=2)
compTwoLoSCentroids = np.zeros((len(compTwoNewLoS), 2), dtype=np.float32)
for i, region in enumerate(compTwoNewLoS):
regionArray = np.array(region, dtype=np.int32)
skyCoords = wcs.pixel_to_world(regionArray[:, 0], regionArray[:, 1])
galCoords = skyCoords.galactic
lMean = float(np.mean(galCoords.l.deg))
bMean = float(np.mean(galCoords.b.deg))
compTwoLoSCentroids[i, 0] = lMean
compTwoLoSCentroids[i, 1] = bMean
if i < 3:
print(f"i={i}, l={lMean:.4f}, b={bMean:.4f}")
print(f"Unique rows: {len(np.unique(compTwoLoSCentroids, axis=0))}")
for i in range(300):
region = compTwoNewLoS[i]
print(f"Region {i}: length={len(region)}, first pixel={region[0]}")
