ssv2-contact-release-interaction-dataset
README.md

ssv2-contact-release-interaction-dataset

A metadata and annotation repository for contact and release interaction events
in videos from the Something-Something V2 (SSv2) dataset. Includes human-annotated spatiotemporal labels for object–agent interactions.

Dataset Label Structure

This repository follows the Something-Something V2 interaction schema,
where each video in the original dataset is associated with a template and placeholders
representing the objects involved in the interaction.

Note: This repository contains only metadata and annotations — not the original videos.

Metadata Folder

All dataset-related metadata files are stored under the metadata/ directory.
These files contain structured information about labeled video events, dataset splits,
and mappings between templates and video IDs.

1. metadata/video_events_labels.json

Contains detailed labels for each annotated event, including the type of interaction and its frame-level attributes.
Each key represents a video ID, and the value is a list of labeled events.

Format example:

{
  "20": [
    {
      "action": "release",
      "agent": "hand-object",
      "frameNumber": 9,
      "pointX": 113,
      "pointY": 169
    }
  ]
}

Description:

  • action – Type of event (e.g., contact, release)
  • agent – Interacting entities (e.g., hand-object, object-surface)
  • frameNumber – The frame in which the event occurs
  • pointX, pointY – Pixel coordinates of the annotated event in the frame

2. metadata/template_to_video_ids_map.json

Maps each action template to all video IDs that were manually labeled and contain interaction events (contact/release).
Only videos with valid annotations are included.

Format example:

{
  "Putting something on a surface": ["5845", "8627", "19469"],
  "Lifting something": ["7001", "7154", "7320"]
}

3. metadata/train_videos_ids_labeled.json,

metadata/validation_videos_ids_labeled.json,
metadata/test_videos_ids_labeled.json

These three files list the video IDs from the corresponding dataset split (train/validation/test)
that were selected for labeling and contain at least one interaction event.

Format example:

[
  "5845",
  "8627",
  "19469",
  "20251"
]

Frame Extraction

We extracted frames from all videos using OpenCV 4.7.0 at their original FPS.
Each frame was saved as a .jpg image (default quality = 95) in BGR color format —
the default channel order used internally by OpenCV.

Example:

import os
import cv2


def video_to_frames(video_path, output_dir):
    os.makedirs(output_dir, exist_ok=True)  # ensure output folder exists

    cap = cv2.VideoCapture(video_path)
    fps = cap.get(cv2.CAP_PROP_FPS)
    count = 0

    while cap.isOpened():
        ret, frame = cap.read()

        if not ret:
            break

        cv2.imwrite(os.path.join(output_dir, f"frame_{count:05d}.jpg"), frame)
        count += 1

    cap.release()
    print(f"Extracted {count} frames at {fps:.2f} FPS.")

The same procedure was applied to all videos in the dataset on a computing cluster, using individual jobs per video.

Annotating Frames

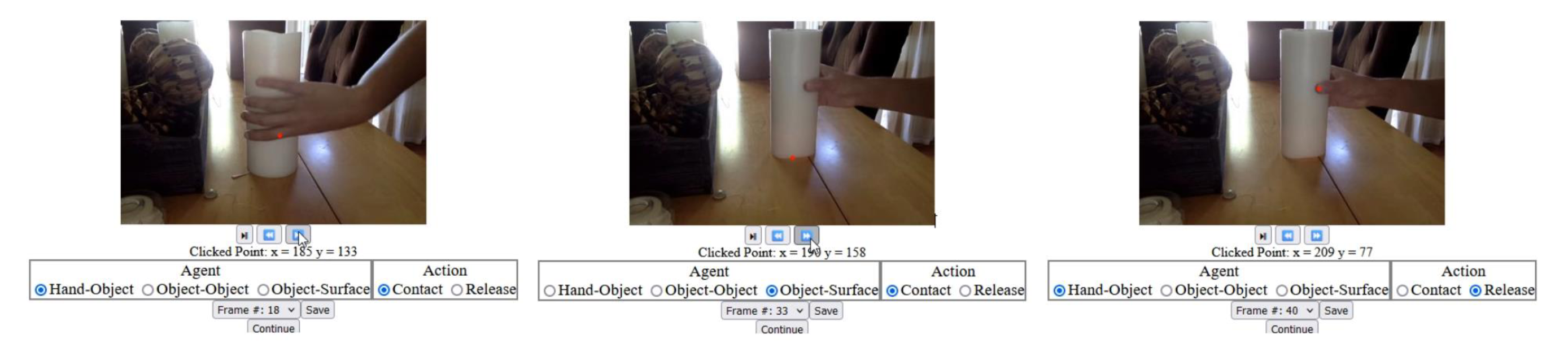

Annotated Frame Example

Collecting human annotations for interactions using the Amazon Mechanical Turk platform.
Human subjects were asked to annotate core interaction events in videos from the SSv2 dataset.

Shown here are example annotations for “contact” and “release” events, where the target object (white candle)
becomes attached to a hand (left) and a surface (middle), or detached from the hand (right).

Each annotation includes:

  • The event type (e.g., contact, release)
  • The agent–object pair (hand–object, object–surface, etc.)
  • The spatiotemporal location of the event (frame number and image coordinates)

Example code snippet:

from io import BytesIO
from urllib.request import urlopen
from PIL import Image, ImageDraw
import numpy as np
from pathlib import Path


def annotate_frame(lbl, wrkr_id_save_dir, point_x, point_y, frame_number, agent, action, point_radius=5):
    """
    Draws annotation info (point, frame number, agent, and action) on an image
    and saves it locally.

    Args:
        lbl (dict): Label data containing 'imageURL'.
        wrkr_id_save_dir (Path or str): Directory where the annotated image will be saved.
        point_x (int): X coordinate of the clicked point.
        point_y (int): Y coordinate of the clicked point.
        frame_number (int): Frame number within the video.
        agent (str): Agent type (e.g., 'Hand-Object', 'Object-Surface').
        action (str): Action type (e.g., 'Contact', 'Release').
        point_radius (int, optional): Radius of the point marker. Defaults to 5.

    Returns:
        Path: Path to the saved annotated image.
    """

    # Ensure save directory exists
    save_dir = Path(wrkr_id_save_dir)
    save_dir.mkdir(parents=True, exist_ok=True)

    # Load the image from the provided URL
    img_url = lbl.get('imageURL')
    url = urlopen(img_url)
    img = Image.open(BytesIO(url.read()))

    # Draw the annotations on the image
    draw = ImageDraw.Draw(img)

    # Draw the red point
    draw.ellipse(
        (point_x - point_radius, point_y - point_radius,
         point_x + point_radius, point_y + point_radius),
        fill=(255, 0, 0)
    )

    # Pick a contrasting color for the text (based on mean image color)
    mean_color = (*(255 - np.asarray(img)[:150, :150].mean(axis=(0, 1))).astype(int), 0)

    # Add textual information
    draw.text((10, 10), f'Frame: {frame_number}', fill=mean_color)
    draw.text((10, 25), f'Point: ({point_x}, {point_y})', fill=mean_color)
    draw.text((10, 40), f'Agent: {agent}', fill=mean_color)
    draw.text((10, 55), f'Action: {action}', fill=mean_color)

    # Save the annotated image
    output_path = save_dir / f'frame_{frame_number}.jpg'

    try:
        img.save(str(output_path))
        print(f"Saved: {output_path}")

        return output_path
    except Exception as err:
        print(f"ERROR: Could not save image {img_url}: {err}")

        return None

Summary Table

File Description
metadata/video_events_labels.json Frame-level annotations for each video, including action type, coordinates, and frame number.
metadata/template_to_video_ids_map.json Mapping of each action template to all labeled video IDs with interactions.
metadata/train_videos_ids_labeled.json IDs of labeled videos in the training set.
metadata/validation_videos_ids_labeled.json IDs of labeled videos in the validation set.
metadata/test_videos_ids_labeled.json IDs of labeled videos in the test set.
